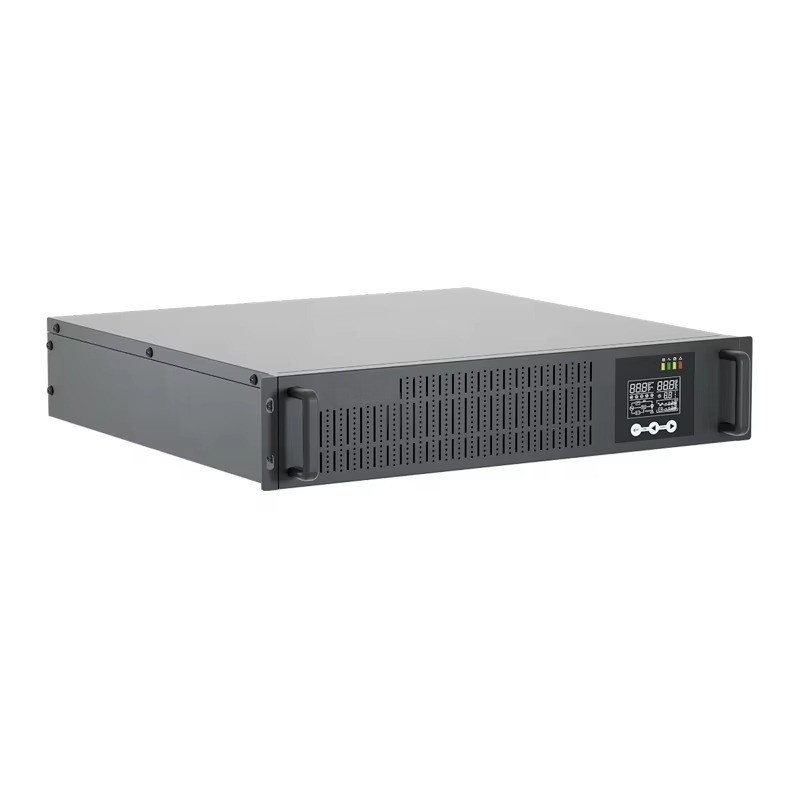

Rak UPS 19 inci, daya UPS dudukan rak, UPS Online

Compact 19-inch rack-mount UPS for reliable power protection in server rooms and data centers. Ideal for network equipment, offering stable backup, high efficiency, and easy integration into standard racks.

Key Features

  • True double-conversion technology for continuous protection
  • Microprocessor and DSP control ensure high system reliability and performance
  • Built-in input power factor correction (PFC)
  • Delivers full output power factor of 1.0
  • Wide input voltage range: 110V–300V AC
  • High efficiency up to 95.5% in online mode
  • Supports 50Hz/60Hz frequency converter mode
  • ECO mode available for energy savings
  • Emergency Power Off (EPO) for safety compliance
  • Advanced graphic LCD with multilingual interface
  • Configurable battery quantity and charging current
  • Supports two-stage and three-stage charging modes
  • Expandable charger current up to 12A (for long-run models)
  • Programmable output voltage settings
  • Cold start functionality from battery
  • Smart charging technology extends battery lifespan
  • Compatible with generator input
  • SNMP slot for remote monitoring and network management
Kategori:
Parameter Specification
Product Name 3KVA High Frequency Rack Mount Online UPS
Model PRM1103
Power Capacity 3KVA / 3KW
Battery Voltage 96VDC
Faktor Daya 1.0
Dimensions (D x W x H mm) 440 x 420 x 88
Berat 7 kg
INPUT
Input Format L + N + PE
Tegangan Terukur 208/220/230/240VAC
Voltage Range 110V–300VAC
Frequency Range 50/60±6Hz (±10Hz settable)
Faktor Daya ≥0.99
THDi ≤3% (Linear), ≤5% (Non-linear)
OUTPUT
Output Format L + N + PE
Tegangan Terukur 208/220/230/240VAC
Voltage Regulation ± 1%
Frequency (Battery Mode) 50/60Hz ± 1%
THDu ≤1% (Linear), ≤3% (Non-linear)
Faktor Daya 1.0
Overload Capacity Various time limits depending on % load
Bentuk gelombang Pure Sine Wave
TRANSFER TIME
AC to Battery 0 menit
Inverter to Bypass 4 ms
EFFICIENCY
AC Mode 95.5% @ 220VAC
Battery Mode 91.5%
BATTERY
Jenis Baterai Depends on application
Battery Count 8
Charging Current 5A (default), adjustable 1–12A
Charging Mode Two-stage / Three-stage
DISPLAY
LCD Working mode, load, input, output
ENVIRONMENT
Suhu Operasional 0–40℃
Storage Temperature -15–60℃ (Battery: 0–40℃)
Kelembaban 20–95% RH (non-condensing)
Altitude ≤1000m
Noise < 45 dB @ 1m
MANAGEMENT
RS232 / USB Windows / Linux / Mac supported
SNMP (Optional) Remote power monitoring via web or SNMP manager

19 inch rack mount ups detail
